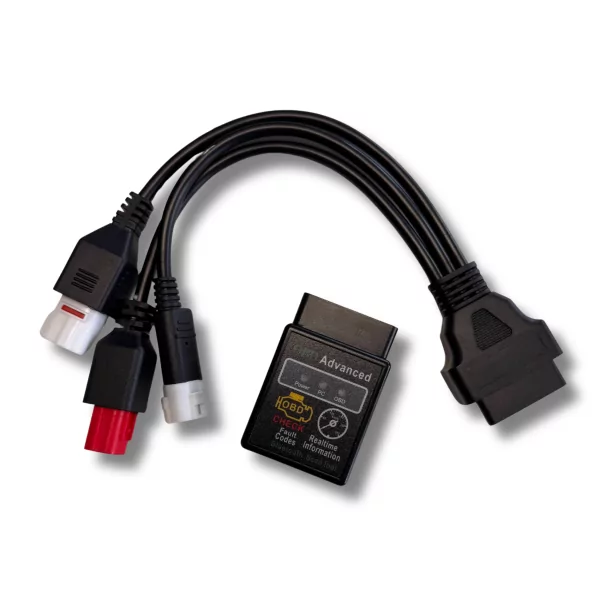

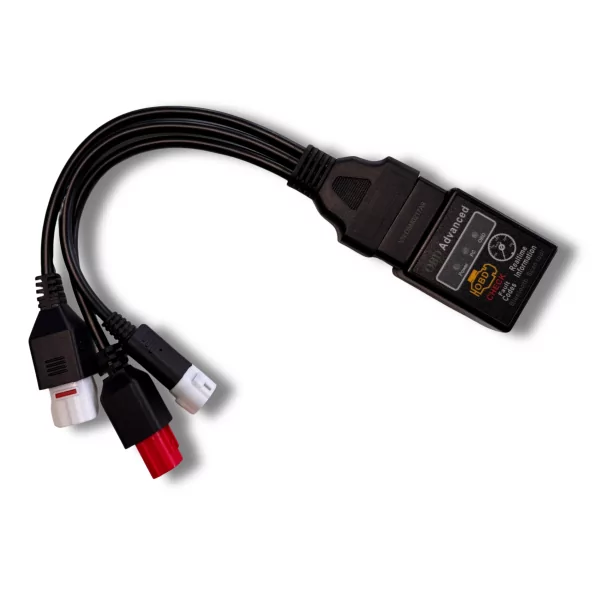

Motorcycle OBD2 Diagnostic Kit Bluetooth ELM327 V1.5 + 3-in-1 Cable (Yamaha 3Pin/4Pin + Euro5+ 6Pin)

The Motorcycle OBD2 Diagnostic Kit allows you to connect directly to your bike’s diagnostic port to read real-time data and manage ECU error codes, such as the well-known P0420 related to catalytic converter issues or faulty lambda sensors.

With the ELM327 V1.5 Bluetooth 4.0 module and the 3-in-1 adapter cable, you can use a single kit for different motorcycles equipped with Yamaha 3-pin, 4-pin, or Euro5+ 6-pin connectors.

Main Functions:
- Read and clear diagnostic trouble codes (DTCs)
- Reset the “Check Engine” light
- Monitor real-time engine parameters, including
- Engine RPM
- Coolant temperature
- Vehicle speed
- Intake manifold pressure
- Engine load value
- Throttle position
- Oxygen sensor voltage
- Air flow, ignition timing, and many more

Software Compatibility:
- iOS: Car Scanner (or equivalent)
- Android: Torque (or equivalent)

Technical Details:
- ELM327 V1.5 module with CAN chip, compatible with major OBD-II protocols
- Bluetooth 4.0, supports both iOS & Android

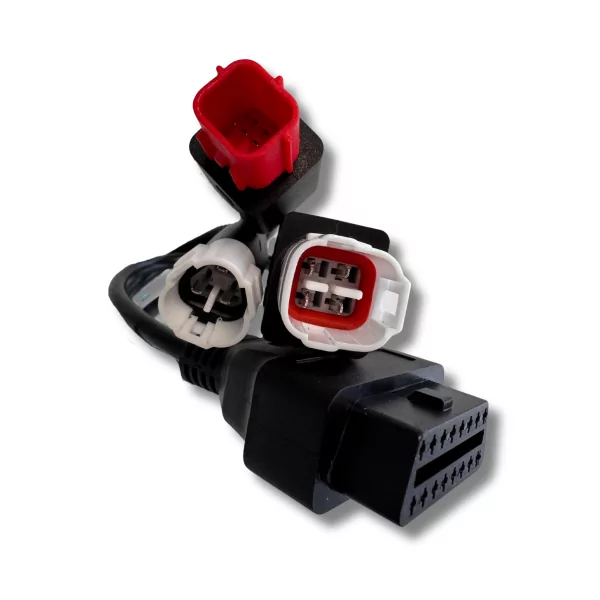

- 3-in-1 diagnostic cable with connectors: Yamaha 3 Pin, Yamaha 4 Pin, Euro5+ 6 Pin

Important Notes:

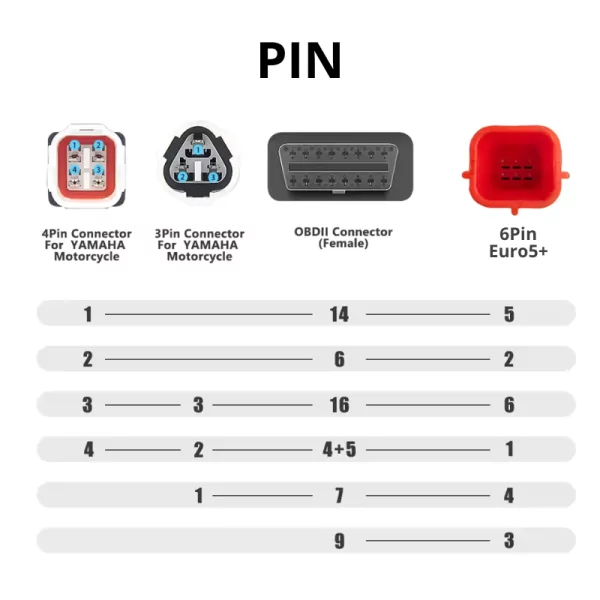

- Check your motorcycle’s diagnostic connector type before purchase (see last product photo for pin details)
- Compatible with motorcycles equipped with an OBD2 diagnostic port via adapter
